Imagine trying to build a 7,541-piece Lego set (we are coming back to this special number later) without an instruction manual. Each individual brick is well-built and fits together perfectly, but without a clear sequence telling you what connects where, the entire structure eventually collapses.
Distributed software systems face the exact same challenge. Process orchestration solves this by providing a centralized system that coordinates automated tasks, microservice interactions, and human workflows in a predictable sequence. By implementing process orchestration with Camunda, engineering teams can eliminate silent system failures, ensure strict execution orders, and maintain real-time visibility across complex distributed environments.
Without this centralized coordination, microservices quickly devolve into a tangled web of unmanaged dependencies. An order flow, an approval process, or a user onboarding sequence all require a definitive blueprint to know exactly where a transaction stands at any point in time. When components call each other blindly via ad-hoc HTTP requests or unmanaged event loops, messages get lost, timeouts are missed, and debugging requires digging through endless logs.
Camunda sits cleanly on top of your existing architecture. It acts as that missing instruction manual, telling your independent services exactly what to do, when to do it, and how to handle distributed failures automatically.
What are the main challenges of distributed microservices?
Most distributed systems hit this wall eventually: a feature requires more than one service to work together.
Take a simple order process: validate the order, charge the customer, notify the warehouse, and send a confirmation email. Four steps, four services. Straightforward on paper. But who controls the flow? What happens when one service goes down? Does the previous one retry? How many times?
This is where most distributed systems quietly break down. It’s not because individual services are poorly written, but because nothing connects them with intention. The logic of “what happens next” gets scattered across codebases, hidden in message queues, or buried in an unowned chain of HTTP calls.
It looks fine when everything works. But when a mid-process failure occurs, you lose all visibility into what ran, what stopped, and what needs to be retried. The structural gap widens, and you are left guessing which specific service caused the failure.
That is the gap Camunda is designed to fill.
What is Process Orchestration?
Camunda is a workflow and process orchestration engine that lets you define, run, and monitor business processes in a visual, structured way. Instead of scattering process logic across multiple services, you define it centrally, and Camunda executes it step-by-step.
The engine uses BPMN (Business Process Model and Notation) to draw out your instruction manual. Each visual step can trigger a service, wait for a response, handle an error, or pause for human intervention.

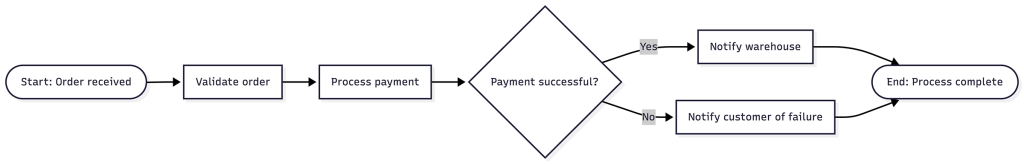

Here is what a simple order flow looks like in Camunda:
- Start → Order received
- Task → Validate order
- Task → Process payment
- Gateway → Payment successful?
- Yes → Task → Notify warehouse
- No → Task → Notify customer of failure
- End → Process complete
Every step is visible, every decision is explicit, and every transition is intentional. Because Camunda tracks the state of each running workflow, you always know exactly where a transaction stands in real-time. For businesses, this translates directly to reduced system downtime and faster troubleshooting.
A Real-World Spring Boot Example
To see how this works in practice, let’s look at a user onboarding flow inside a Spring Boot microservice architecture. When a new user registers:
- Their account must be created.
- A welcome email must be sent.
- Data must sync to a third-party CRM.
- A sales rep must manually approve enterprise accounts.
With Camunda, you model this entire flow as a single BPMN process. Your Spring Boot services stop calling each other directly; they simply execute their isolated job when Camunda commands them to, then report back when finished.
Below is a complete implementation of a decoupled worker using Camunda 8 syntax (which leverages the modern Zeebe engine, using @JobWorker rather than legacy Camunda 7 Java Delegates):
package com.example.workers;
import io.camunda.zeebe.client.api.response.ActivatedJob;
import io.camunda.zeebe.spring.client.annotation.JobWorker;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import java.util.Map;
@Component
public class SyncCrmWorker {
private final CrmService crmService;
// Dependency injected service ensures the class is fully functional
@Autowired
public SyncCrmWorker(CrmService crmService) {
this.crmService = crmService;
}
@JobWorker(type = "sync-crm")
public void handleCrmSync(final ActivatedJob job) {
// Fetch variables from the centralized Camunda process state
Map<String, Object> variables = job.getVariablesAsMap();
String userEmail = (String) variables.get("email");
// Execute local microservice business logic
crmService.syncUserField(userEmail);
// Note: Local microservice exceptions are still handled here,
// while broader multi-service retry policies are managed by Camunda.
}
}Here is how that maps to our Lego analogy:
- Each BPMN task is an instruction page telling you which brick to place next.
- Each Spring Boot service is a Lego brick that does one thing well.
- Camunda is the manual holding all the pages together in the correct sequence.
When the CRM sync fails on step 3, Camunda knows exactly where the process stopped. It can retry automatically based on predefined policies, escalate to a developer, or trigger a compensation flow to safely undo what already ran.
Furthermore, Camunda has built-in support for human tasks. For the manual approval in step 4, it pauses the process, assigns a ticket to a sales rep, and waits for their input before moving on automatically.
How Camunda Handles Distributed Failures
In Lego terms, skipping instruction pages means you eventually have to tear apart what you built to fix a mistake ten steps back. The further along you are, the more painful it gets.
The same is true in distributed systems. When a process fails halfway through, un-orchestrated systems leave you guessing what to roll back or safely retry.
Camunda handles orchestration-level errors natively through compensation handlers via the Saga Pattern. If a step fails, Camunda automatically triggers a rollback of the completed steps. While local microservice-level exceptions still require standard coding practices inside your application, Camunda removes the need to write custom distributed rollback code or perform manual database cleanups across your network.
High Visibility, Low Maintenance
Following the manual leads to a predictable, reliable build. With Camunda, the same principle applies to your backend architecture.
You get a distributed system that is visible end-to-end, resilient to failures, and easy to change when business requirements shift.
New team members can look at a BPMN diagram and understand the entire system architecture without a two-hour walkthrough. Debugging a failed process takes minutes instead of hours.
Camunda doesn’t replace your microservices. It gives them structure, direction, and a reliable framework to work together.
You wouldn’t build a 7,541-piece Millennium Falcon without the manual. Don’t build your distributed system without one either.
